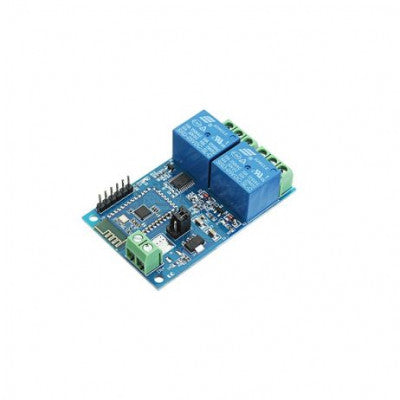

DC 5V 2 Channel Bluetooth Wireless Control Relay Module
Control larger voltages with ease using this Bluetooth relay module.
- Module Operating Voltage: 5VDC
- Onboard Bluetooth chipset: Yes
- Effective control distance: 10m
- Relay: 5V, 10 A / 250 v AC 10 A / 30 v DC
- Board Dimensions (L x W x H) mm: 63 x 42 x 19
- Weight: 35 gm
Top Features:
- Easy setup and pairing with Android Phone
- Onboard Bluetooth and relay status indicators
- Optocoupler isolation for anti-interference
- Diode effusion protection for short response time
This single channel relay module is perfect for controlling devices remotely. It can handle up to 250V AC and 30V DC, making it versatile for various projects. The onboard Bluetooth chipset allows for easy signal triggering using a Bluetooth scanning device like a mobile phone. Pairing is simple by selecting the module in your Bluetooth browser and entering the password 1234.
The module features two LEDs for status indication - a red power LED and a green activation LED that lights up when a signal is received. An audible click can be heard when the relay triggers, connecting the output pins. The onboard LEDs provide clear feedback on the relay and Bluetooth status.
LED Indications:
- LED D1 (Blue): Bluetooth state indicator
- LED D2/D3 (Red): Relay indicator
