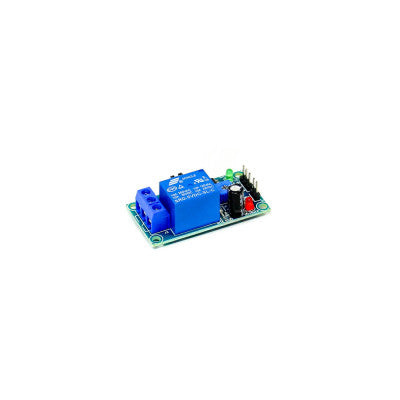

5V 1-Channel Relay Interface Board
Control appliances with large current using this versatile relay board.
- Recommended Power Supply: 3.3~5
- Operating Voltage (VDC): 5
- Distance Measuring Range (CM): 0-2

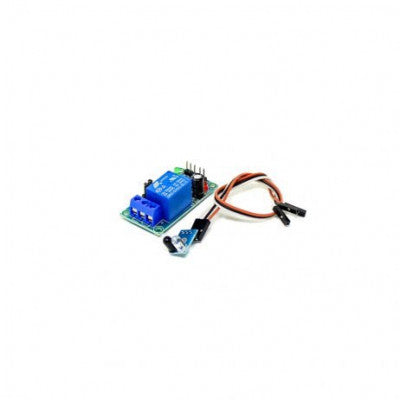

- Package Includes: 1 x SONGLE 5V 1-Way, Tracing Sensor Relay Module
Top Features:
- Board dimension 3.5cm * 1.5cm with installation hole
- Power LED and working status LED
- LM393 Volt compactor for digital output
- 5V 1-Channel Relay interface board
This 5V 1-Channel Relay interface board allows you to control various appliances and equipment with a large current. It can be easily controlled by popular microcontrollers like Raspberry Pi, Arduino, and more. The board features a high-current relay capable of handling AC250V 10A and DC30V 10A. It is equipped with indication LEDs for relay output status and activates on a low level signal.
The breakout board design is based on the LM393 sensor with an adjustable potentiometer, allowing for trigger setup based on approaching distance as a digital value. With both analog and digital output options, this module is commonly used for obstacle avoidance, robot trace tracking, and production line item detection.
Find the TCRT5000 sensor head included in this module, which integrates an IR transmitter and receiver. It not only detects obstacles but also provides distance as an analog output with lower power consumption.
Images are for illustration only; actual product may vary.
