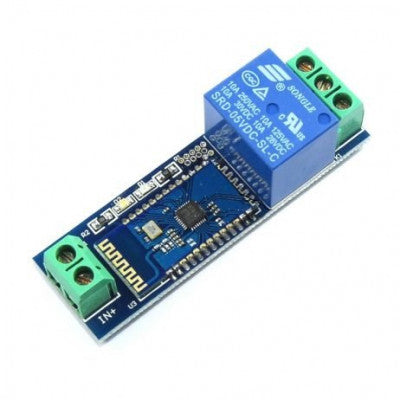

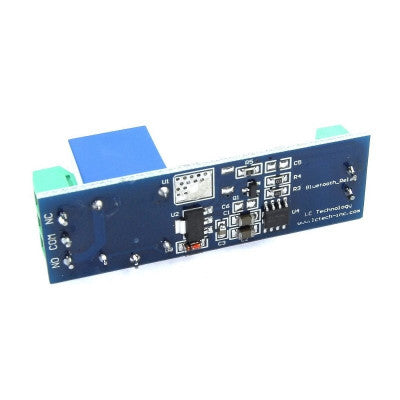

DC 5V 1 Channel Bluetooth Wireless Control Relay Module
Control larger voltages with ease using this single channel relay module.
- Module Operating Voltage: 5VDC
- Onboard Bluetooth chipset: Yes
- Effective control distance: 10m
- Relay: 5V, 10 A / 250 v AC 10 A / 30 v DC
- Board Dimensions (L x W x H) mm: 63 x 23 x 19
- Weight: 20 gm
Top Features:
- Easy setup and pairing with Android Phone
- Onboard Bluetooth and relay status indicators
- Optocoupler isolation for anti-interference
- Diode effusion protection for short response time
This module is designed for controlling larger voltages in your projects. It can activate up to 250V AC and 30V DC, allowing you to control devices remotely or trigger systems with a signal. The onboard Bluetooth chipset enables easy triggering of the relay using a Bluetooth scanning device like a mobile phone. Pairing is simple by selecting the module in your Bluetooth browser and entering the password 1234.
The module features two LEDs for status indication: a red power LED and a green activation LED that lights up when a signal is received. An audible click confirms the relay has been triggered, connecting the output pins. The LED indications help in monitoring the Bluetooth state and relay status.
*Images are for illustration only; actual product may vary.
