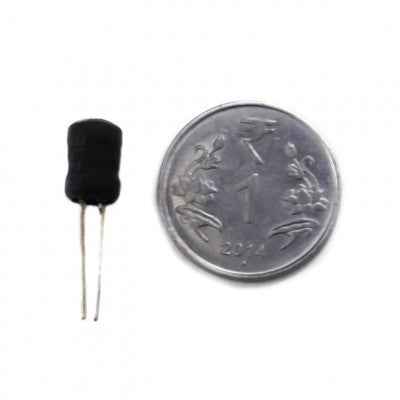

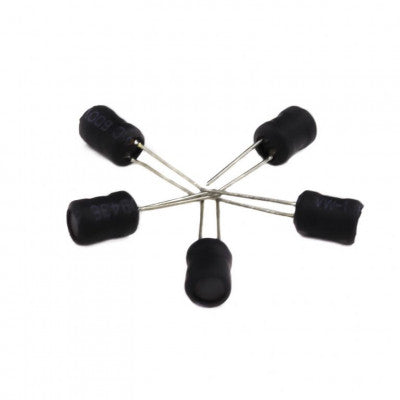

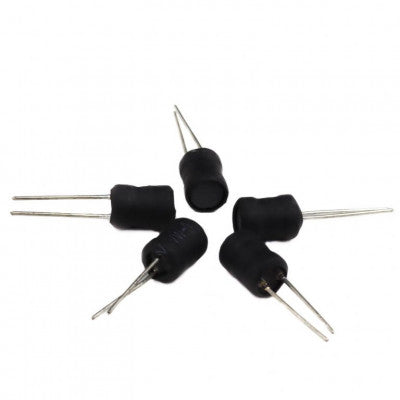

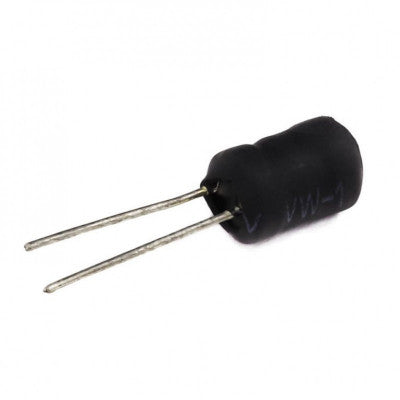

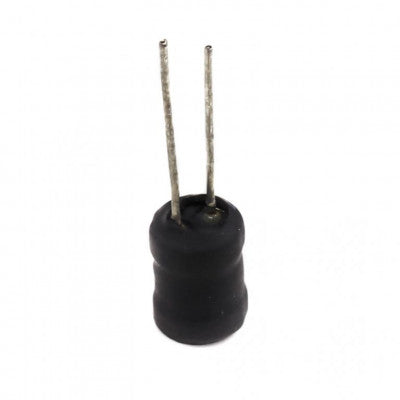

4.7mH 8x10mm Radial Leaded Power Inductor
A small choke coil power inductor with high Q factor and self-resonance frequency.
- Inductance: 4.7mH
- Tolerance (%): 10
- Mounting Type: Through Hole
- DC Resistance (DCR) (m?) at 20C: 0.24
- Current Rating (A): 0.8
- Frequency (Hz): 1000
- Operating Temperature Range (°C): -40 to 85
- Length (mm): 11
- Width (mm): 9
- Weight (gm): 1 (approx)
Features:
- Small size
- High Q factor
- High self-resonance frequency
- Small magnetic flux leakage
The 4.7mH 8x10mm Radial Leaded Power Inductor is a small choke coil power inductor with a wire wound on the core (magnetic or air) and leads attached for through-hole mounting. It is also known as a choke coil, choke, or differential mode inductor, used to limit alternating current through the coil. This power inductor has good magnetic shielding and is RoHS free.
Applications:
- Motherboards for laptop and desktop computers
- DC/DC converter in distributed power systems or VRM applications
- Inductor for general purpose use
*Images are for illustration only; actual product may vary.
