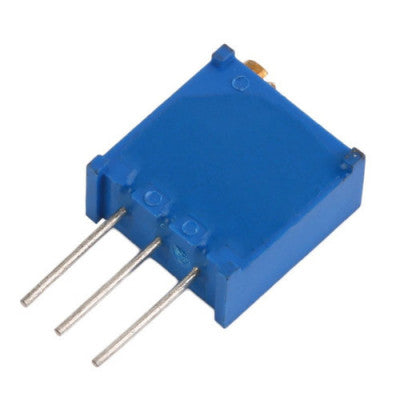

Trimpot
High accuracy variable resistor with 3 terminal pins for PCB mounting.
- Track Resistance: 2K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 2K ohm
- Resistor Element Material: Variable Rotary Trimmer
Top Features:
- High accuracy
- Variable voltage output
- 3 terminal pins
- PCB mountable
The Trimpot is a variable resistor used for varying voltage in a circuit. The voltage output between the terminals changes as the trimpot is rotated. The outer two pins are connected to Vcc and 0V, while the center pin outputs a variable voltage between 0V and Vcc as the rotary cermet is adjusted.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
