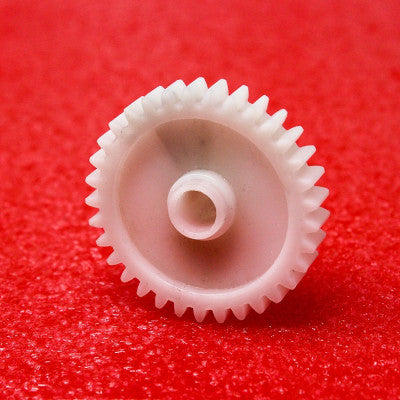

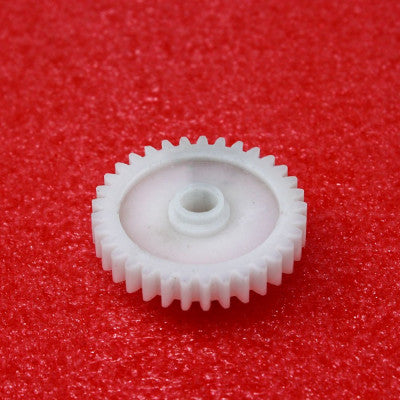

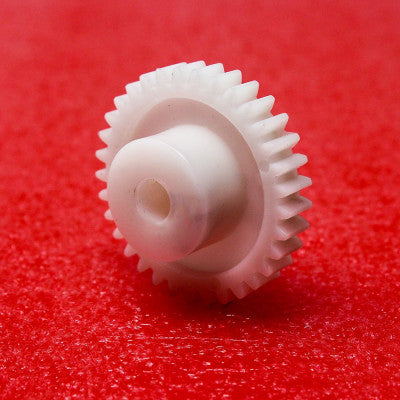

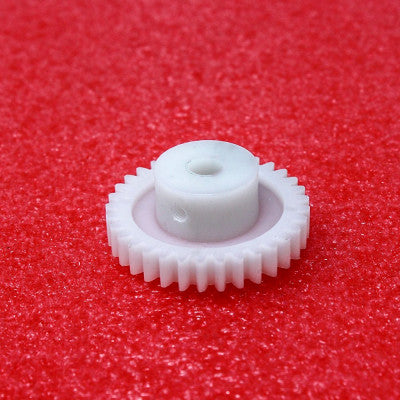

Nylon Spur Gear
Gears play a crucial role in various technologies, with nylon spur gears offering advantages over metal counterparts.
- Model: 1M-28T-6-28
- Gear Structure: Spur
- Pitch (Module): 1
- No. of teeth: 28
- Total Width (W): 13.5
- Face Width (FW): 5.9 mm
- Internal Diameter (ID): 6 mm
- Outside Diameter (OD): 29.3 mm
- Pitch Circle Diameter (PCD): 28 mm
- Gear Material: Nylon
- Color: White
- Weight (gm): 6
Features:
- Good Quality Material
- Light Weight
- Heavy Duty and Long Life
- Good Temperature and Environmental Resistance
Nylon spur gears have significant advantages over their metal counterparts. Nylon materials used in gears, such as polyacetal (POM) and MC Nylon, allow for weight reduction in machine design. They are quiet, absorb vibration, and do not require lubrication. These gears are used to reverse the direction of rotation, transfer rotational motion to a different axis, and alter the speed of rotation to adjust the end turning force or torque available.
Package Includes: 1 x Nylon Spur Gear (1M-28T-6-28)
Images are for illustration only; actual product may vary.
