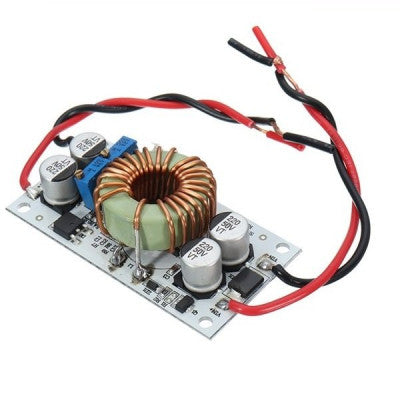

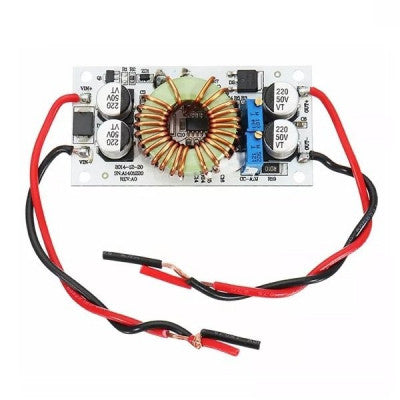

250W High Power Constant Voltage Current Adjustable Aluminum Substrate LED Driver Module
Adjustable output voltage ranges from 10V to 50V with a wide range of current output up to 6A.
- Input Supply voltage (V): DC 10 ~ 40
- Input current: 6A (MAX)
- Static operating current (mA): 10
- Output voltage (V): DC 10 ~ 50
- Constant current range (A): 0.2 ~ 6
- Operating Temperature (°C): -40 ~ +85
- Working Frequency (KHz): 150
- Conversion efficiency: 92% ~ 96%

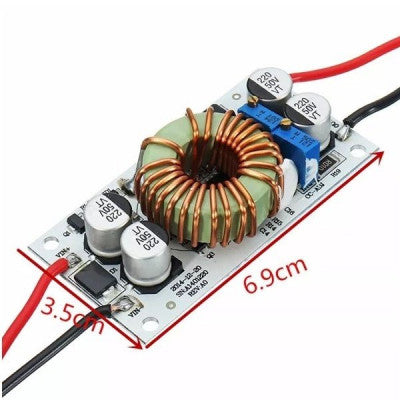

- Length (mm): 70
- Width (mm): 36
- Height (mm): 18
- Weight (gm): 50
Top Features:
- Adjustable output voltage and current
- High efficiency (92% ~ 96%)
- Wide range of applications
- Stable constant current

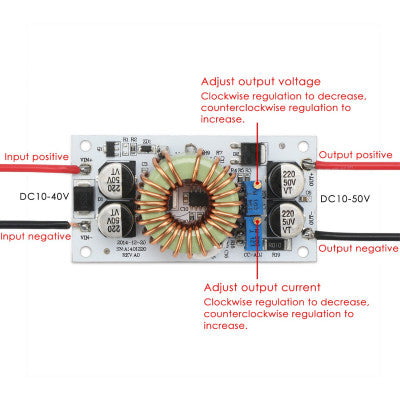

The 250W High Power Constant Voltage Current Adjustable Aluminum Substrate LED Driver Module is designed with a dedicated benchmark IC and high-precision current sensing resistor to provide stable constant current, making it ideal for LED driver applications. The module features onboard multiturn potentiometers for high accuracy voltage and current regulation, ensuring good stability.

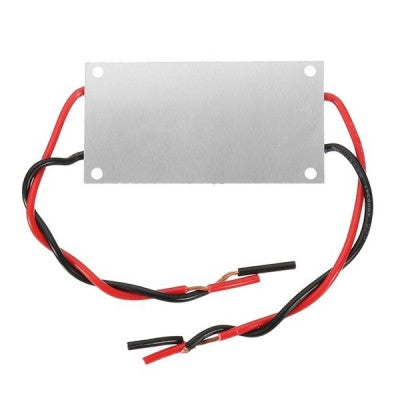

With an output current that can be raised up to 10A (recommended for continuous use up to 6A), this module is versatile and suitable for various applications such as battery charging, LED driver power supply, and vehicle power supply. The module's aluminum substrate acts as a heat sink, allowing it to run continuously at high power applications.
The module includes MOS Schottky diode independent heat sinks for efficient heat dissipation and uses a large size Sendust Core and double pure copper wiring to improve working efficiency and reduce heat. Its non-isolated boost module property and adjustable constant voltage and current ranges make it a valuable tool for DIY projects, electronic equipment power supply, and more.
Package Includes: 1 x 250W High Power Constant Voltage Current Adjustable Aluminum Substrate LED Driver Module
* Images are for illustration only; actual product may vary.
