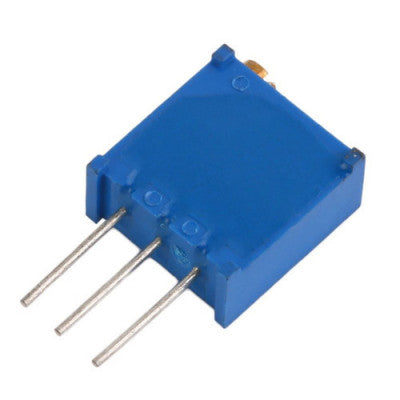

Trimpot
High accuracy variable resistor with PCB mountable 3 terminal pins.
- Track Resistance: 20K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 20K ohm
- Resistor Element Material: Variable Rotary Trimmer
Top Features:
- High accuracy
- Variable voltage output
- PCB mountable
- 3 terminal pins
The Trimpot is a high accuracy variable resistor that is PCB mountable with 3 terminal pins. It is designed to vary the voltage between the terminals as the trimpot is rotated. This variable resistor is commonly used for adjusting voltage within a circuit, with the outer two pins connected to Vcc and 0V, while the center pin outputs a variable voltage between 0V and Vcc as the rotary cermet is adjusted.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
* Images are for illustration only; actual product may vary.
