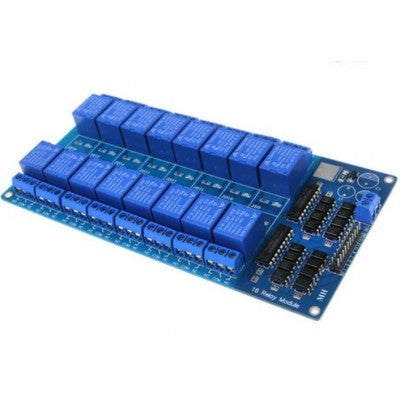

16 Channel 5V Relay Module with Optocoupler
Control various appliances and equipment with large current using this relay module.
- Working voltage: 5 Volts
- Maximum Current: 500 mA
- Low State Voltage: 0 - 0.5 volts (Relay is ON)
- High State Voltage: 3.7 to 5 volts (Relay is OFF)
- Number of Channel: 16
- Dimension: 180 x 90 x 20mm (L x W x H)
- Weight: 100 g
Top Features:
- 5V relay with AC contact capacity of 10A 250V
- Optocoupler protection for enhanced safety
- Onboard power supply module eliminates the need for external power supply
- Active low I/O port driver
This 5V 16-Channel Relay interface board can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic). Each relay requires 15-20mA Driver Current and features indication LED for Relay output status. The module supports all SCM Drive and can be used as a microcontroller development board module or for appliance control and PLC extended output.
The module uses top-quality isolation optocouplers for strong anti-jamming ability and stable performance. Each relay common terminal "COM" is independent, allowing user-friendly access to different signals. The module can handle full on/off for each road and is equipped with motion lights. All interfaces can be easily connected through terminal leads.
Instructions:
- The power supply should be DC 5V within the specified range.
- Avoid reversing the power supply.
- Ensure the load power has a margin for the relay load to prevent impact on product life.
Applications:
Can be used as a microcontroller development board, home appliance control, or PLC expansion output.
