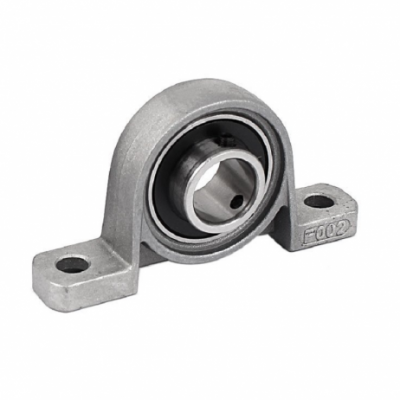

15mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP001
Convenient and versatile bearing with self-aligning ability
- Model: KP002
- Material: Zinc Alloy
- Bearing Inner Diameter (mm): 15
- Bearing Outer Diameter (mm): 20
- Length (mm): 80
- Width (mm): 16
- Height (mm): 43
- Weight (gm): 71
Features:
- Durable with high precision
- Can withstand great weight
- Adjustable angle between inner bearing and outer fixing ring
- Easy to install
The 15mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP001 comes with top set screws which makes the inner ring of the bearing fix on the shaft. It is very convenient to install. There is a certain self-aligning ability for the bearing, so it can be mounted on a general accuracy rack. Well-adapted and widely used. Two-bolt housing with ball bearing insert for ready-to-mount installation. Setscrew locking collar for secure attachment to the guided shaft. Between the inner bearing and outer fixing ring angle can fine-tune.
Package Includes: 1 x 15mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP002
* Images are for illustration only; actual product may vary.
