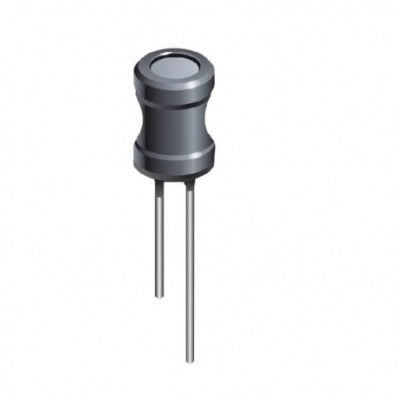

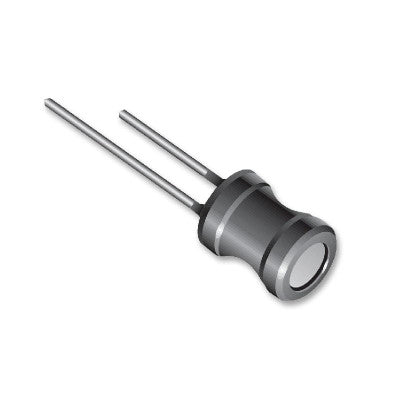

13R223CRLB Series Radial Lead Inductors
Radial lead inductor for power supplies, DC/DC converters, and general use.
- Inductance: 470 uH
- Tolerance: 10%
- Maximum DC Current: 500 mA
- Maximum DC Resistance: 1.3 Ohms
- Operating Temperature: 20°C to +80°C
- Self Resonant Frequency: 1.8 MHz
- Termination: Standard
- Mounting Style: PCB Mount
- Core Material: Ferrite
Key Features:
- Radial lead design
- Suitable for power supplies
- Works well in DC/DC converters
- Great for general use
Inductors, like capacitors, can hold a charge or power within them after a certain time and can maintain that power source even when an outside supply is removed. An inductor stores energy in the form of a magnet. The defining feature of an inductor is a resistance to change in current. A radial inductor has a similar design to radial electrolytic capacitors whereby the inductor stands upright on the PCB and has two legs protruding from the bottom.
* Images are for illustration only; actual product may vary.
