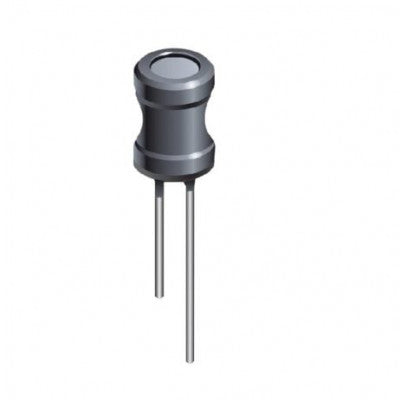

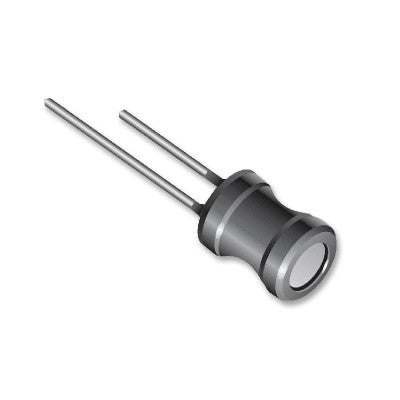

13R223C Radial Lead Inductor
Inductor for power supplies, DC/DC converters, and general use.
- Inductance: 470 uH
- Tolerance: 10%
- Maximum DC Current: 500 mA
- Maximum DC Resistance: 1.3 Ohms
- Operating Temperature: 20°C to +80°C
- Self Resonant Frequency: 1.8 MHz
- Termination: Standard
- Mounting Style: PCB Mount
- Core Material: Ferrite
Top Features:
- Stores energy as a magnet
- Resistance to change in current
- Radial design for upright PCB placement
Inductors, like capacitors, can hold a charge or power within them after a certain time and can maintain that power source even when an outside supply is removed. An inductor stores energy in the form of a magnet. The defining feature of an inductor is a resistance to change in current. A radial inductor has a similar design to radial electrolytic capacitors whereby the inductor stands upright on the PCB and has two legs protruding from the bottom.
Packages Includes: 1 x 13R223C Radial Lead Inductors
* Images are for illustration only; actual product may vary.
