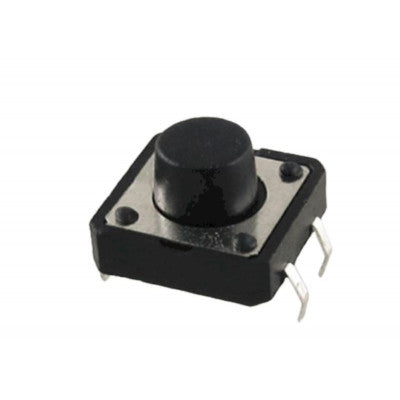

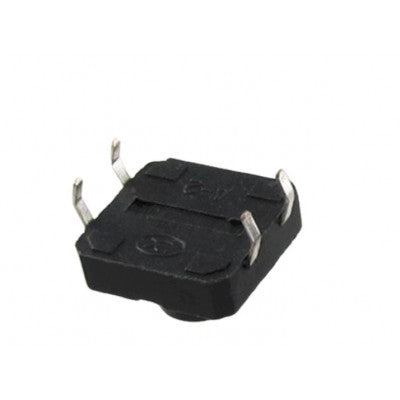

12x12x9mm Tactile 4 Pin Push Button Switch
Widely used standard input buttons for electronic projects
- Operating Voltage: 12 V DC
- Operating Current: 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Mounting Type: Through-hole
- Contact Material: Aluminium alloy
- Contact Resistance: 50m?
- Insulation Resistance: 100M?
- Operating Temperature Range: -20°C to +70°C
- Operation Force: About 3-5N
- Operation Stroke: 1.05mm
- Body Material: Plastic
- Mech. & Electrical Life: 300,000 Cycles
- Protection Grade: IP65
- Length (mm): 12
- Width (mm): 12
- Height (mm): 9
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Compact and lightweight
12x12x9mm Tactile 4 Pin Push Button Switch is a widely used standard input button for electronic projects. It works best when mounted on a PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open and when the button is pressed, they are momentarily closed to complete the circuit.
This tactile switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. It is commonly used in telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
These switches come in a pack of 5, making them convenient to have around for various projects.
*Images are for illustration only; actual product may vary.
