12-60V Dual Display Automatic Voltage Identification Meter-Blue
Real-time battery level status display for various types of batteries
- Voltage Measuring Range: 12-60V DC
- Working Current: 5 ~ 15mA
- Material: Copper + ABS Plastic
- Body Color: Black
- Dimension (L x W x H)mm: 55 x 32 x 28
- Cable Length: 15 cm
- Digital Display Light Color: Blue
- Type: LED Voltage Voltmeter
- Working Temperature: -10 ºC ~ 65 ºC
- Refresh Speed: About 300mS Once
- Waterproof: No
Features:
- Double display battery + voltage at a glance
- Intuitive display with 8 bars showing battery power
- Wide range of applications for various battery types
- Reverse connection protection function
This 12-60V Dual Display Automatic Voltage Identification Meter-Blue can be used as a fuel gauge suitable for 12V, 24V, 36V, 48V, 60V battery cars, and similar electric vehicles (common for batteries below 84V). It can also measure lithium batteries, polymer batteries, and nickel-metal hydride batteries to show the real-time battery level status on your vehicle dashboard. The connection of this automatic voltage meter is very simple by connecting it directly to the battery terminal parallelly. The meter comes with a dual display. The upper side of the display shows the battery level divided into 8 colorful bars with the last two red-colored alert bars to show low battery when it comes to 10% cut. You need to install this module on your dashboard with dimensions of 50mm x 30mm.
It can also be used for other power/voltage measurement purposes. The display is more intuitive with the upper 8 bars showing the battery power (2 red and 6 green). The downlink voltmeter displays battery voltage, and the voltmeter decimal point automatically shifts for higher accuracy. The meter has a wide range of applications, including lithium battery packs, lead-acid batteries, car batteries, electric car batteries, and many other types of batteries and electric equipment. The calculation of the existing voltage is the same as that of the power display meter of an electric vehicle. The meter head automatically recognizes the voltage and electricity and has a reverse connection protection function (reverse connection will not burn).
Package Includes:

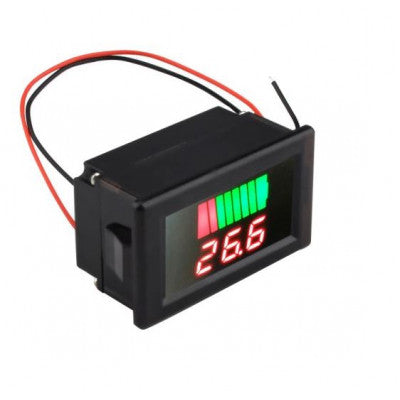

- 1 X 12V-60V DC Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter
* Images are for illustration only; actual product may vary.
