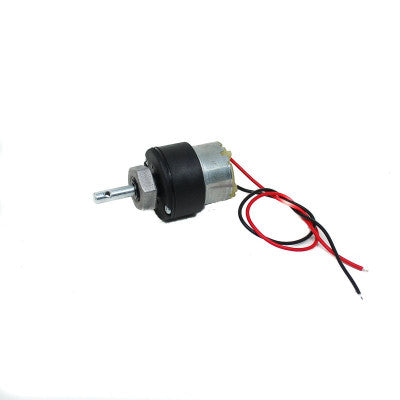

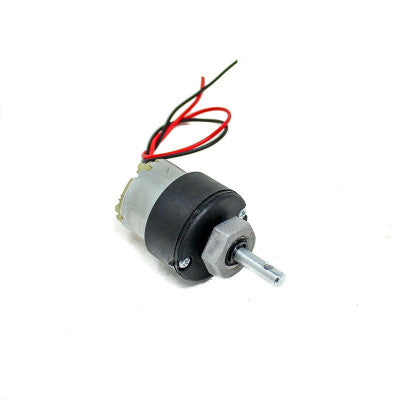

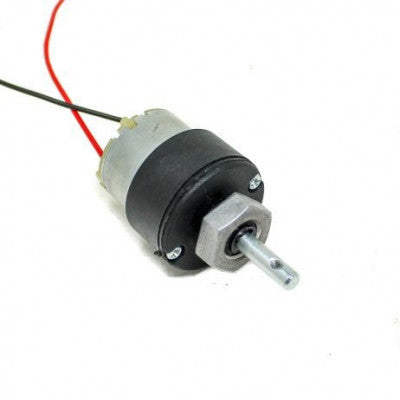

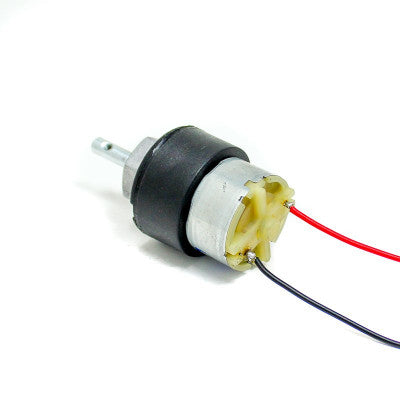

10RPM 12V Low Noise DC Motor With Metal Gears Grade A
High-quality DC motor with metal gears for optimal performance
- Gear Material: Metal
- Rated Speed (RPM): 10
- Operating Voltage (VDC): 12
- Load Current Max (mA): 300
- No-Load Current (mA): 60
- Gearbox Diameter (mm): 38
- Motor Diameter (mm): 32
- Motor Length (mm): 75
- Shaft Diameter (mm): 6
- Shaft Length (mm): 21
- Weight (gm): 75
Features:
- Good Quality Gears
- Metal gears for better wear and tear resistance

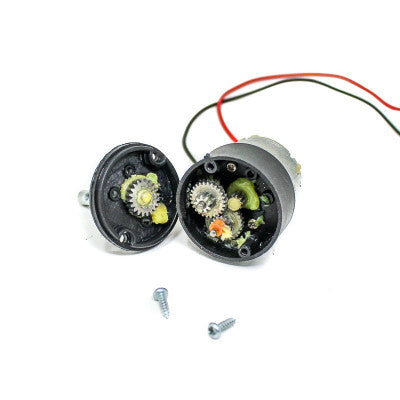

- Sealed and lubricated gearbox with lithium grease
- Wide operating voltage range (4V to 12V) for varied RPM and torque
These Center Shaft DC Geared Motors are designed for easy use in various robotic applications. The motor's shaft extends through the center of the gear box assembly, making it simple to connect to wheels or other mechanical assemblies. The motor can be controlled using an L298N H-bridge module with an onboard voltage regulator motor driver.

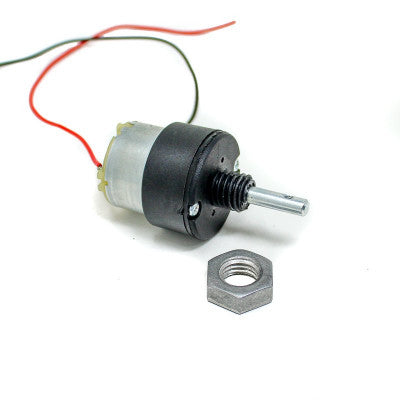

With a 3mm threaded drill hole in the shaft and nut and threads for easy connection, this motor is versatile and efficient for your projects.
* Images are for illustration only; actual product may vary.
