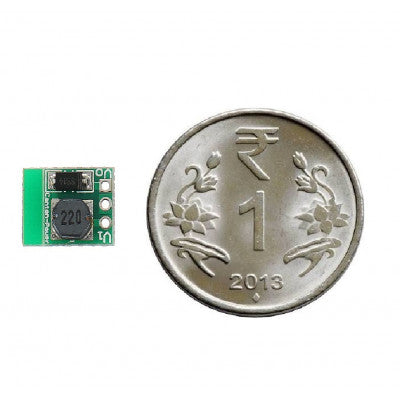

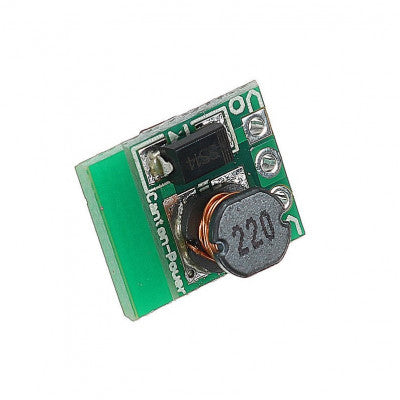

Voltage Boost Converter Module
Provides stable 5V DC output from 1.5V to 5V input range
- Input Voltage: 0.8 - 3.3V
- Output Voltage: 5V
- Max. Output Current: 0.5A
- Efficiency: 85%
- Dimensions: 11mm x 7.5mm x 10.5mm
- Weight: 1g
Features:
- Small in size
- Light-weight
- Different power consumption for different voltages
This voltage boost converter module provides a stable 5V DC output within an input range of 1.5V to 5V. It efficiently boosts the voltage level and ensures a balanced output. It is crucial to adhere to the following conditions while using this module:
- Input voltage: Cannot exceed the nominal voltage to prevent module damage
- Input power: Must be greater than the output power to maintain the nominal voltage
- Output load: Should not exceed the nominal load to sustain the nominal voltage
Operating at a frequency of 150KHZ, this DC-DC boost converter module has a typical conversion efficiency of 85%. The module's output current ranges from 7mA at a starting voltage of 0.8V to 480mA for input voltages greater than 3V.
Package Includes: 1 x 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC Boost Converter Step-Up Module
*Images are for illustration only; actual product may vary.
