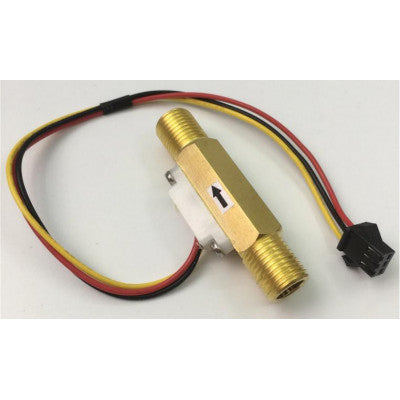

1/4" Brass Water Flow Sensor
Easily measure water flow in industrial and commercial applications.
- Water quality requirement: Drinking water health standards, 0-80?
- Flow range: 0.35 - 3.0 Liter/min
- Withstand hydraulic pressure: ?1.75 MPa
- Voltage/electric current: DC 4.5 - 18 Volt, ?15mA
- Insulation resistance: >100M?
- Electrical strength: AC500V, 50HZ
- Output level: Rated voltage DC5V, high level ?4.5 Volt, low level ?0.5 Volt
- Pulse duty cycle: 50%
Top Features:
- Flow range: 0.35 - 3.0 Liter/min
- Voltage/electric current: DC 4.5 - 18 Volt, ?15mA
- Output level: Rated voltage DC5V, high level ?4.5 Volt
- Cumulative flow conversion: 1 Liter water=1780 pulse, accuracy: 8%
This 1/4 inch water flow sensor is used extensively in various types of vending machines. It is connected in line with the liquid whose flow rate needs to be measured. The sensor has a simple rotating wheel with a magnet. As the liquid flows, the wheel rotates, and a hall effect sensor measures the rotations to provide pulses for calculating the flow rate and dispensed liquid amount.
The sensor comes with a 3 pin JST connector:
Red: Vcc 5 to 18 volts
Black: Ground
Yellow: Pulse Output signal
Applications:
Widely used in the water industrial field, such as thermostatic water heater, water purifier, water dispenser, smart card equipment, coffee machine, etc.
Note: When magnetic material is close to the sensor, its characteristics may vary. To avoid particle debris, the sensor must be installed after a filter. The flow sensor installation should avoid strong vibration and shaking of the environment to maintain measurement accuracy.
* Images are for illustration only; actual product may vary.
