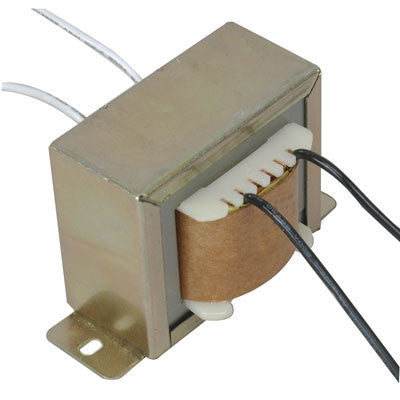

0-9 500mA Center Tapped Step Down Transformer
A general purpose chassis mounting mains transformer with 230V primary winding
- Input Voltage: 230V AC
- Output Voltage: 9V or 0V
- Output Current: 500mA
- Mounting: Vertical mount type
Top Features:
- Soft Iron Core
- 500mA Current Drain
The 0-9 500mA Center Tapped Step Down Transformer is a versatile transformer with a non-center tapped secondary winding. It features flying colored insulated connecting leads, approximately 100mm long. This transformer acts as a step-down transformer, converting AC - 230V to AC - 9V, providing outputs of 9V and 0V.
The construction of the transformer includes a solid core and winding. It is a static electrical device that transfers energy through inductive coupling between its winding circuits. The transformer's cores are made of high permeability silicon steel, which greatly reduces magnetizing current and confines the flux to closely couple the winding.
Applications:
- DIY projects requiring in-application high current drain
- On chassis AC/AC converter
- Designing a battery charger
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
