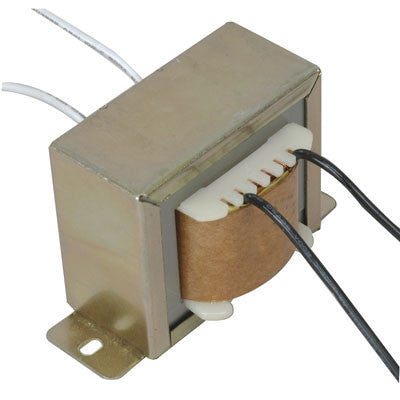

0-24 5Amp Step Down Transformer
A general purpose chassis mounting mains transformer with 230V primary winding
- Input Voltage: 230V AC
- Output Voltage: 24V or 0V
- Output Current: 5 Amp
- Mounting: Vertical mount type
- Winding: Copper
Top Features:
- Soft Iron Core
- 5 Amp Current Drain
- 100% Copper Winding
Transformer has non-center tapped secondary winding with flying colored insulated connecting leads (Approx 100 mm long). Acts as a step-down transformer reducing AC from 230V to 24V. The construction includes Solid Core and Winding. Made of high permeability silicon steel to reduce magnetizing current and confine flux.
The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding.
Applications:
- DIY projects requiring in-application high current drain
- On chassis AC/AC converter
- Designing a battery charger
*Images are for illustration only; actual product may vary.
